SKU: BTAGA601BK-2
BARCODE:
VENDOR: Magicminer

Bitaxe Gamma 602/60X

0 Reviews

31% off

$129.99 USD

$89.99 USD

Color: Orange

Worldwide Delivery

Efficient logistics to anywhere

Quality Guarantee

Committed to superior standards

After-Sales Service

Attentive support for every order

Description

Specification

FAQ

Description

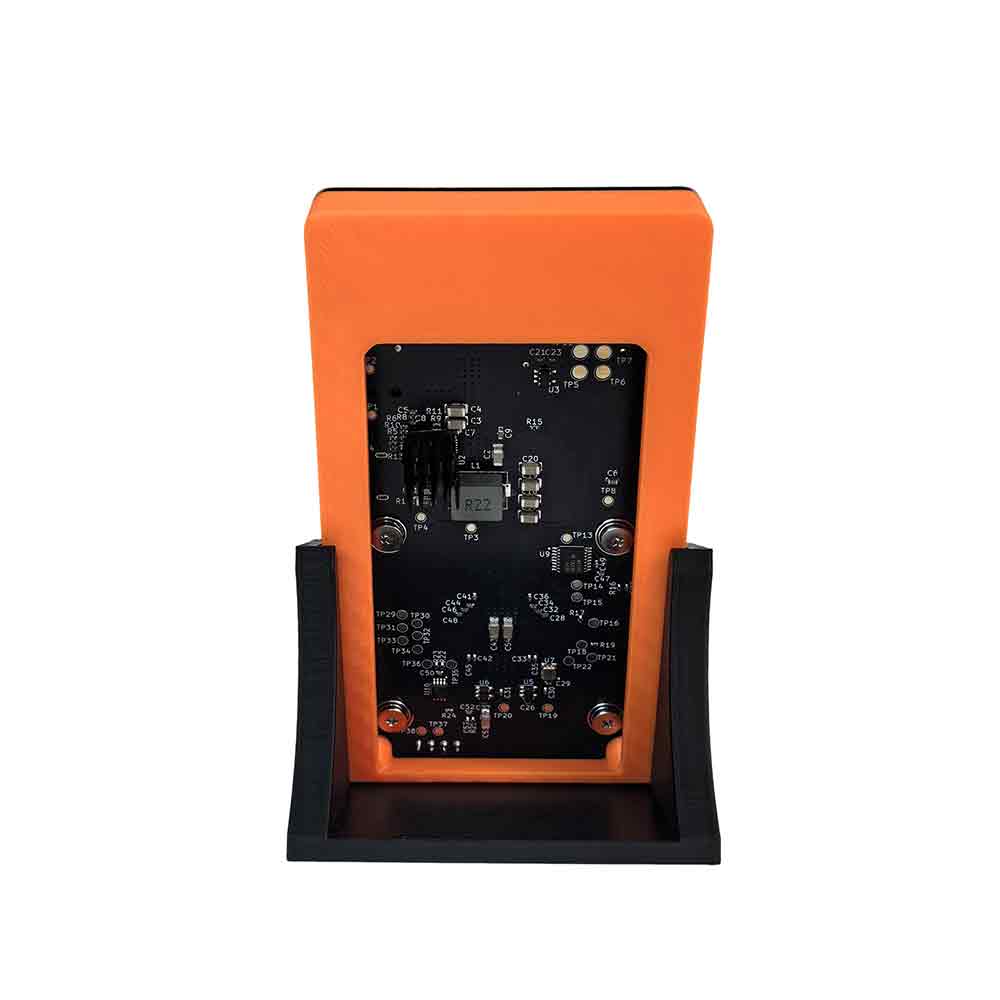

Bitaxe Gamma 602/60X – Open Source Desktop Mining

The 602 Miner is a high-performance desktop-class SHA-256 ASIC miner designed for enthusiasts, home miners, and small-scale mining environments. It features an active air-cooling system (heat pipe heatsink + PWM smart fan), providing stable operation, controlled power consumption, and low noise for long-term 24/7 continuous use.

Key Features

Desktop-Friendly Design: Compact form factor tailored for home and personal desktop use.
Active Air Cooling: Smartly balances high cooling efficiency with minimal noise levels.
Multiple Mining Modes: Flexible support for various pool protocols and requirements.
24/7 Reliability: Built and tested for stable long-term continuous operation.

Technical Specifications Table

Specifications	Details
Model	602
Algorithm	SHA-256
Network	WiFi 2.4G Only (5G not supported)
Power Consumption	35W ±10%
Cooling Mode	Active Air Cooling (Heat Pipe + PWM Fan)
Mining Modes	SOLO / PPLNS / PPS
Operating Temperature	0 - 35 °C
Noise Level	Typical < 40 dB
Power Interface	DC Jack (Includes 40W Switching Power Supply)

Package Contents

602 Miner ×1
User Manual ×1
40W Switching Power Supply ×1

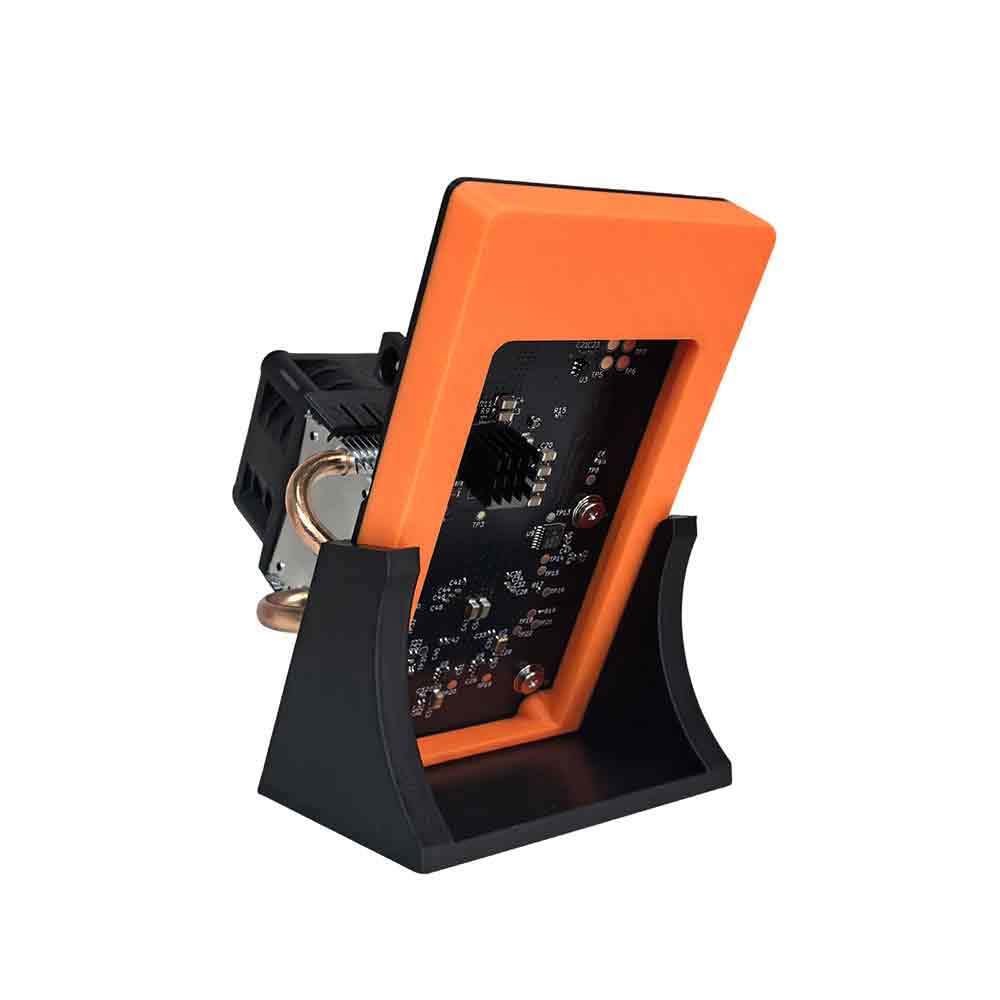

Product Hardware Structure

PWM Smart Fan: Automatically adjusts fan speed based on real-time chip temperature to optimize airflow and noise.
ASIC Heatsink: Heat-pipe-based heatsink engineered to efficiently dissipate heat from core hashing chips.
Power Chip Heatsink: Independent cooling component that lowers power management chip temperatures, enhancing long-term operational stability.
Interface Area: DC Jack power connector and Status Indicator LED (if applicable).

FAQ & Important Safety Warnings

Q: Are fluctuations in hashrate and power normal?

A: Yes. Hashrate fluctuations within ±5% and power variations within ±10% are completely normal.

Q: Does the miner support 5G WiFi?

A: No. The device supports 2.4GHz WiFi only.

Q: What is the maximum safe Core Voltage (Core Vol) setting?

A: Do not set Core Vol above 1.25V. Higher values may trigger power adapter protection, causing instability or shutdown.

Disclaimer: This product is an electronic computing device that generates heat during operation. Please use it in compliance with local electrical and safety regulations.

Specification

Model: 602
Algorithm: SHA-256
Power Consumption: 35W ±10%
Cooling System: Active air cooling featuring a heat-pipe heatsink and a smart PWM fan
Noise Level: Typically < 40 dB
Connectivity: WiFi 2.4G (5G not supported)
Mining Modes: SOLO, PPLNS, and PPS
Operating Temperature: 0 °C to 35 °C
Power Input: DC Jack (includes a 40W switching power supply)

FAQ

Operating Status & Performance

Q: Is hashrate or power fluctuation normal?
A: Yes. Hashrate variations of ±5% and power fluctuations of ±10% are within the device's acceptable operating range.

Q: The fan noise is loud after startup. Is this normal?
A: Yes. During startup or under high load, the PWM fan may increase speed to enhance cooling, which can temporarily increase noise. This is normal behavior.

Q: The device temperature seems high during operation. Is this an issue?
A: No. ASIC miners generate heat by design during operation. As long as the device operates within the specified 0–35°C temperature range, this is normal.

Q: Will the power consumption always stay at 25W?
A: No. Power consumption varies depending on load, ambient temperature, and operating conditions. Values within 25W ±10% are considered normal.

Operation & Usage

Q: Does the device support 24/7 continuous operation?
A: Yes. The device is designed for long-term continuous operation, provided it is used with proper ventilation and a stable power supply.

Q: Can the device be used in a closed cabinet or enclosed space?
A: No. Enclosed spaces restrict airflow and may cause overheating, throttling, or protective shutdown.

Q: Will the device resume mining automatically after a power outage?
A: Yes. If network and mining configurations remain unchanged, the device will automatically resume operation after power is restored.

Network & Maintenance

Q: Does the device support 5G WiFi?
A: No. The device supports WiFi 2.4G only.

Q: Can I replace the fan or heatsink myself?
A: No. Disassembling or replacing components may affect cooling performance and may void the warranty.

Q: What should I do if the device cannot connect to the network or frequently disconnects?
A: Please check the following: ensure the WiFi network is 2.4G; check router signal strength; verify network stability; and remove potential sources of interference.

Mining & Long-Term Maintenance

Q: Does the device guarantee mining profits?
A: No. Mining profitability depends on network difficulty, pool rules, electricity costs, and other external factors. The manufacturer makes no guarantees.

Q: What should I do if performance decreases after long-term use?
A: Regularly check for dust buildup at air intake and exhaust vents and maintain proper ventilation. Good cooling helps sustain stable long-term performance.
