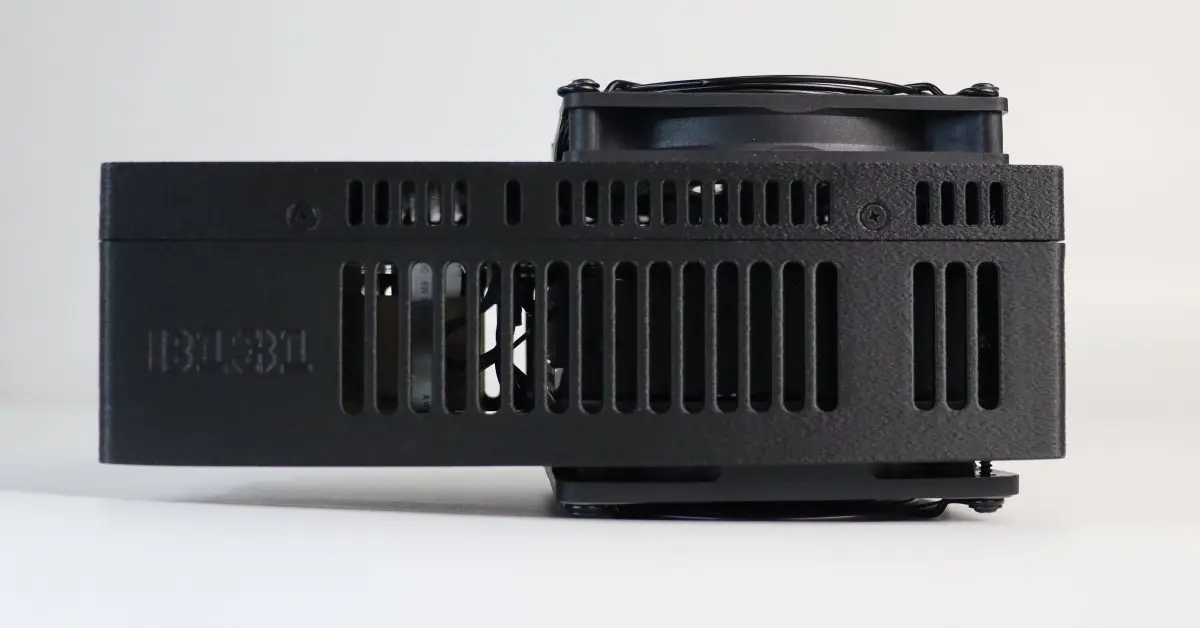

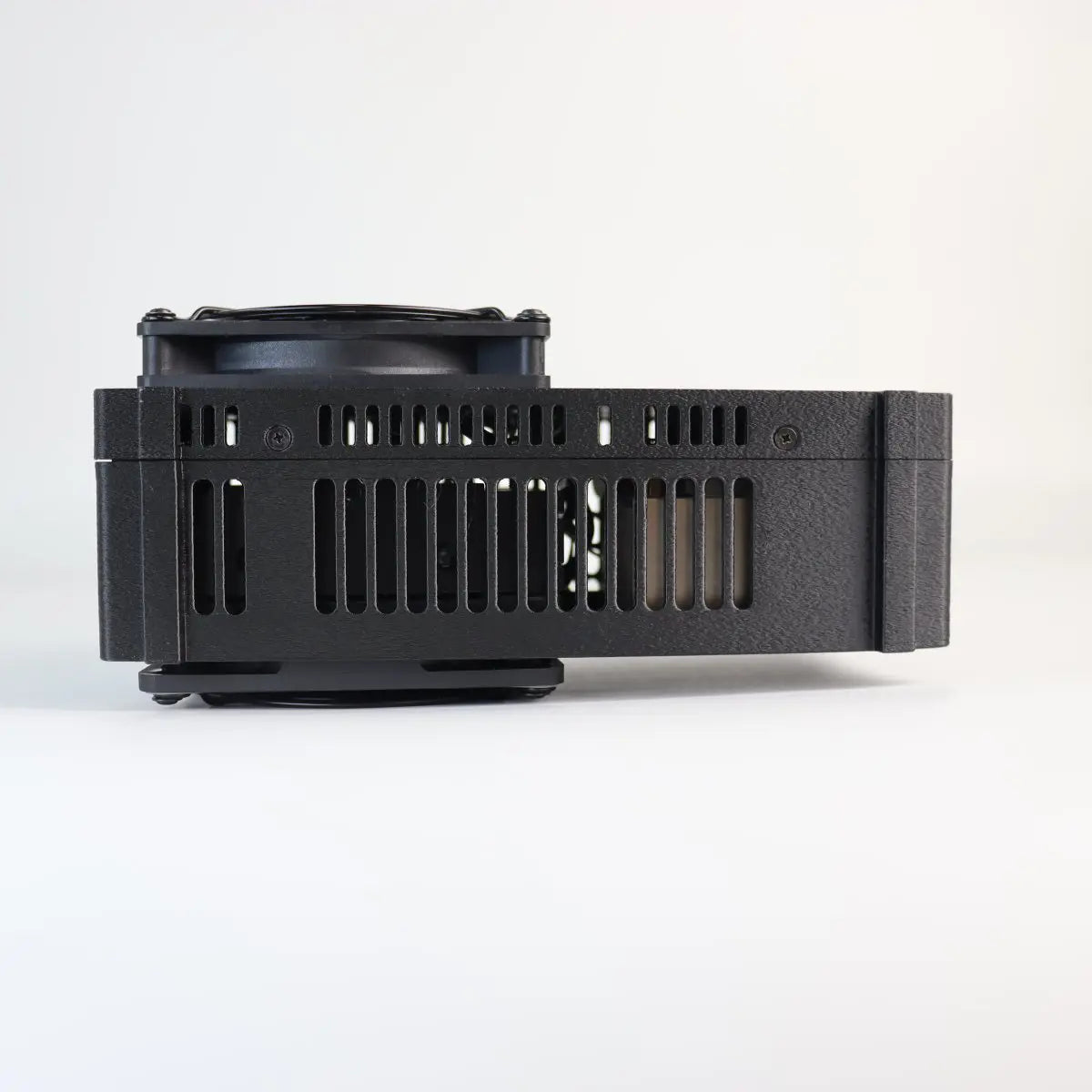

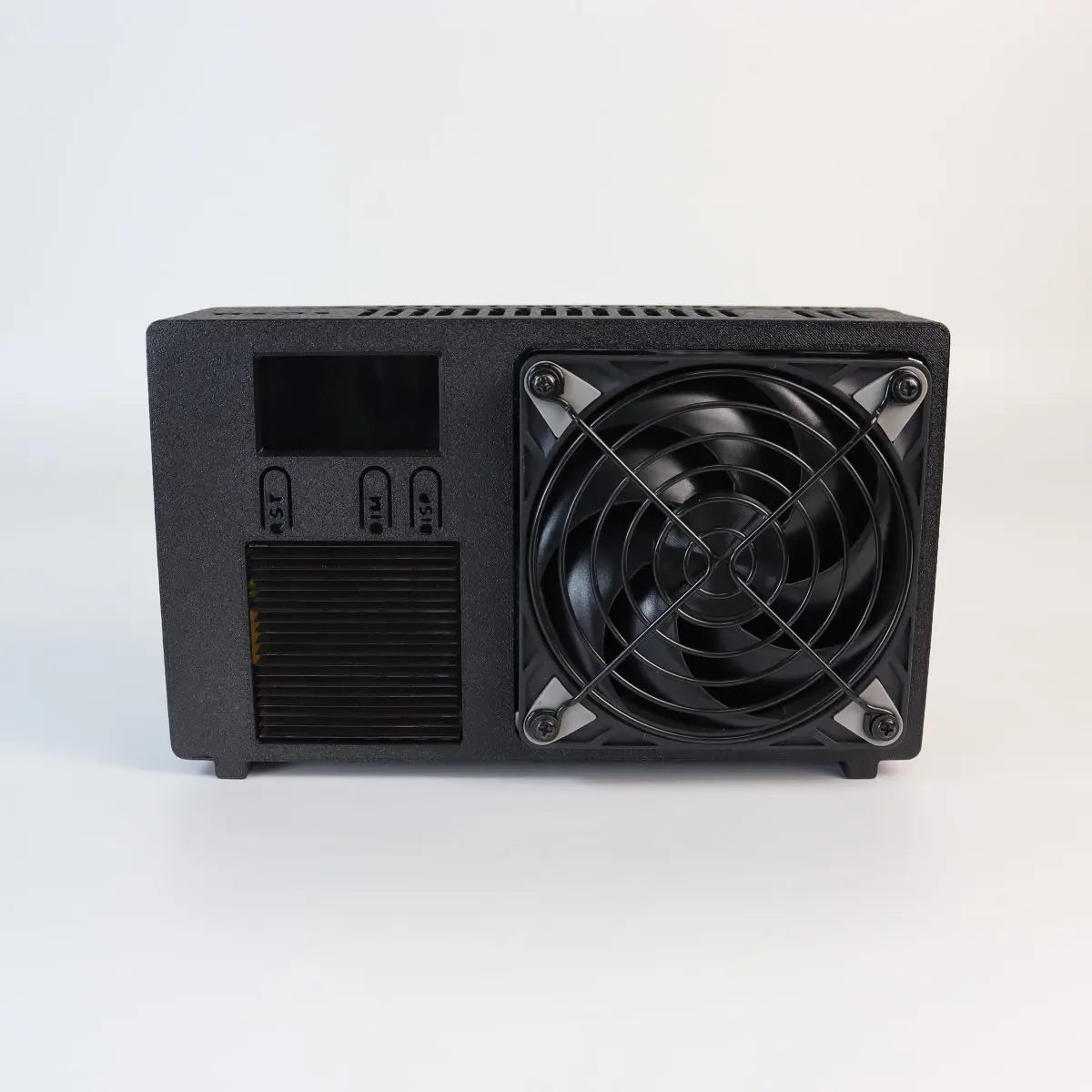

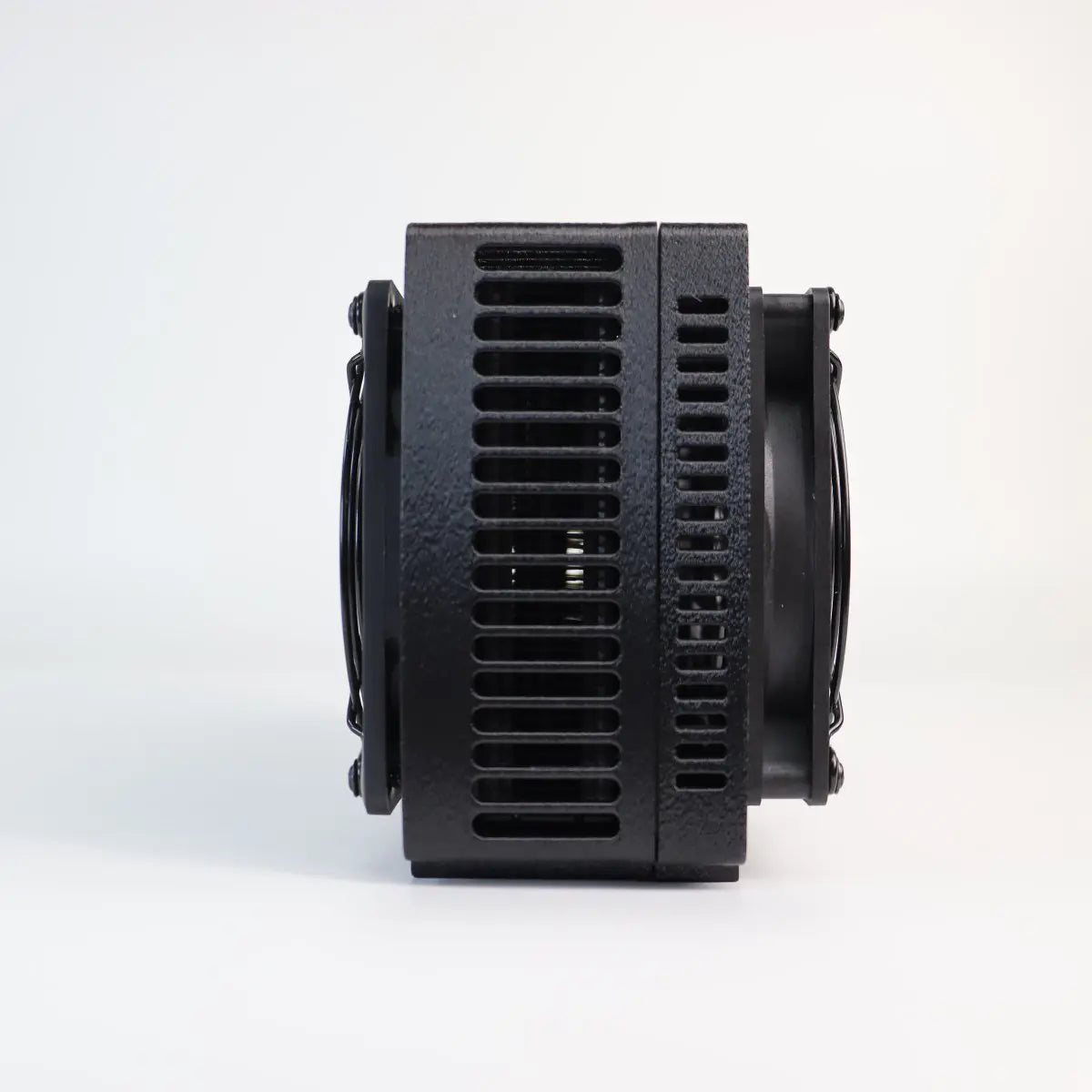

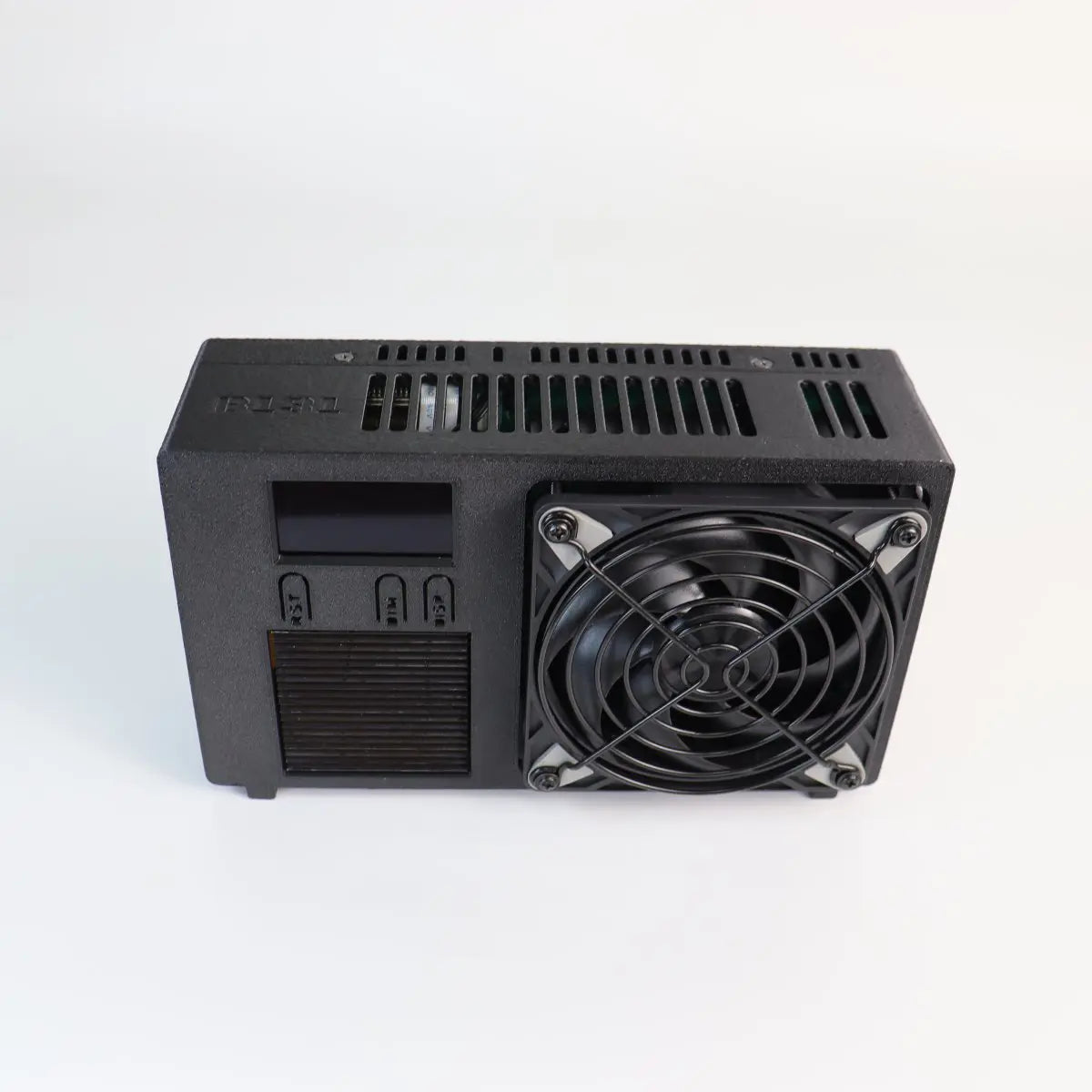

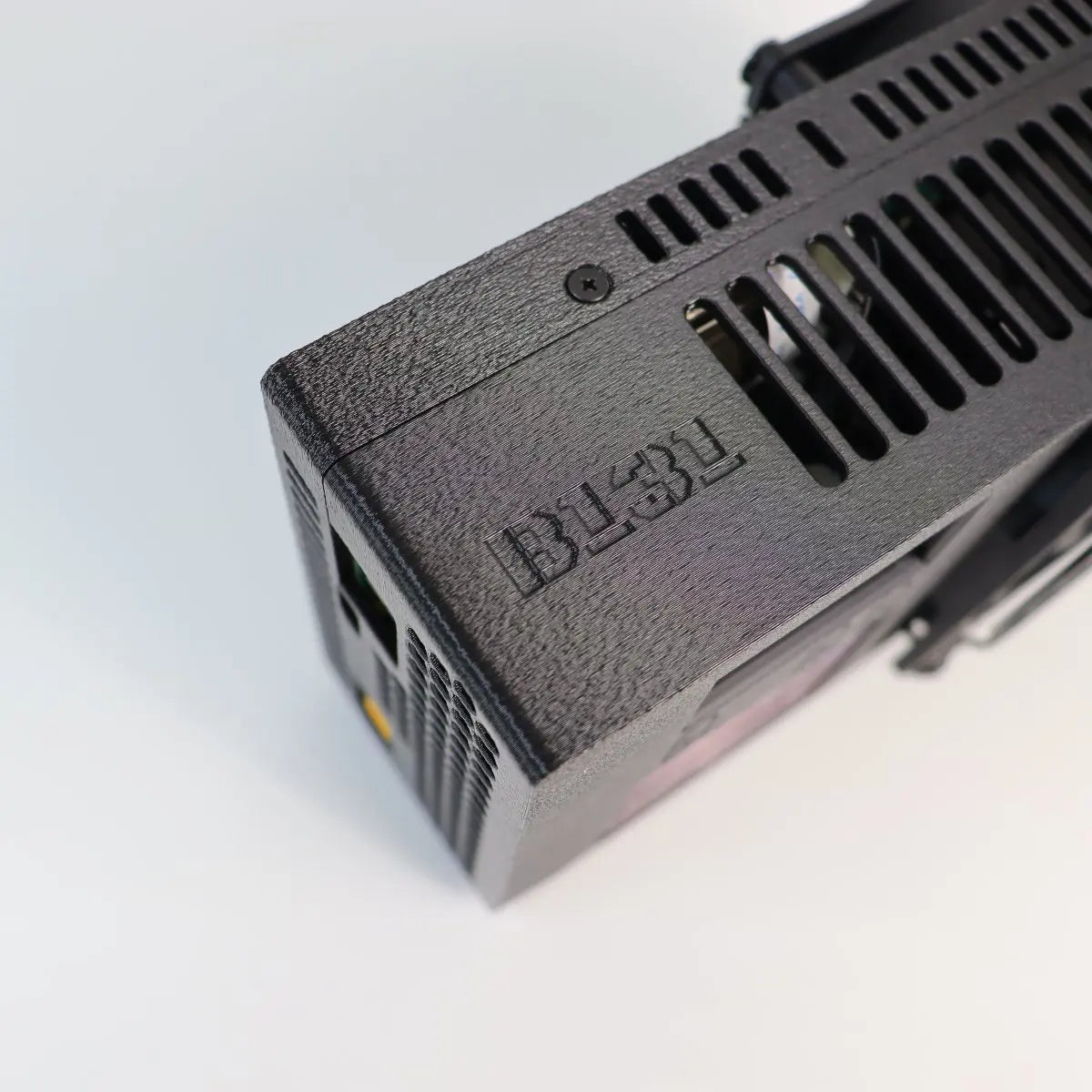

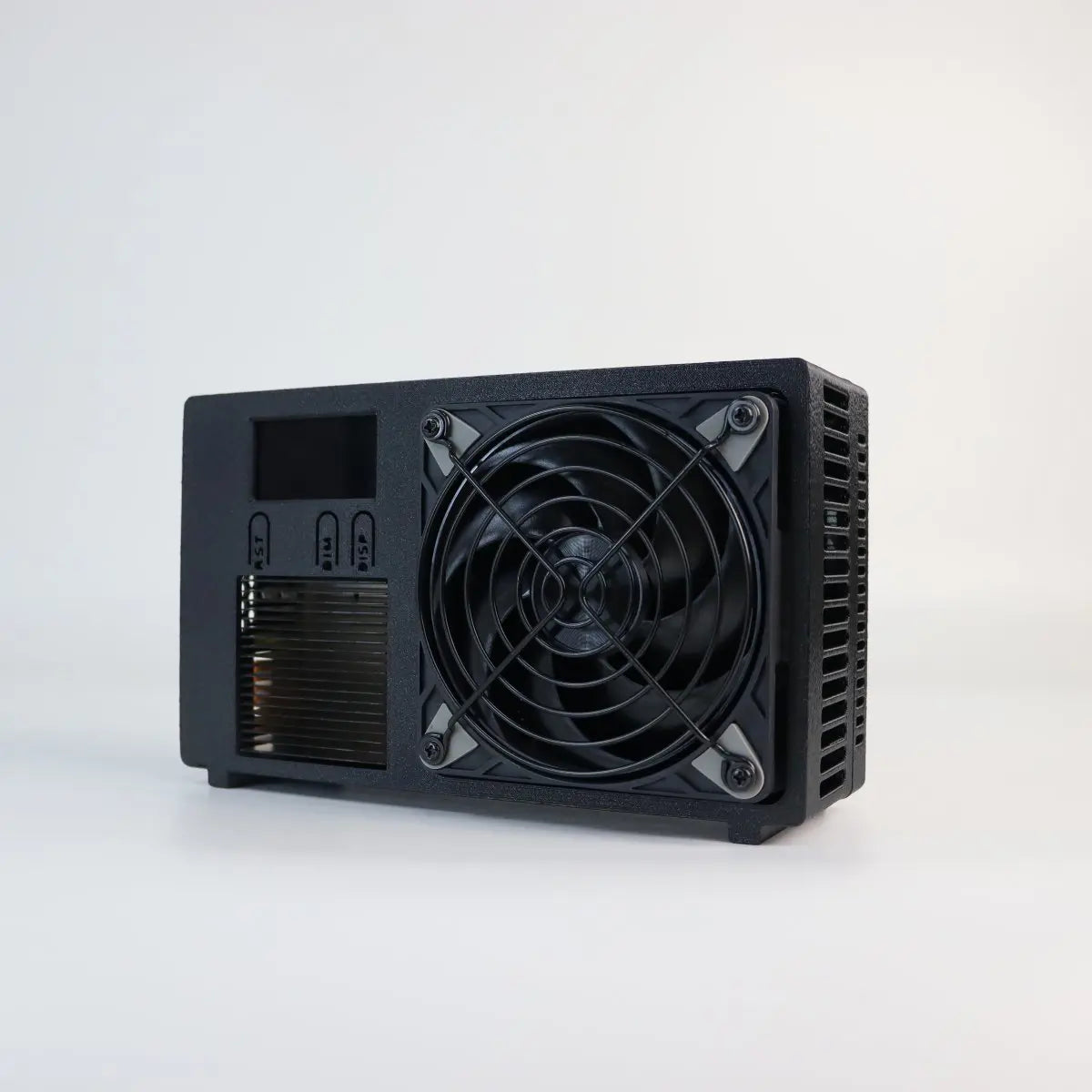

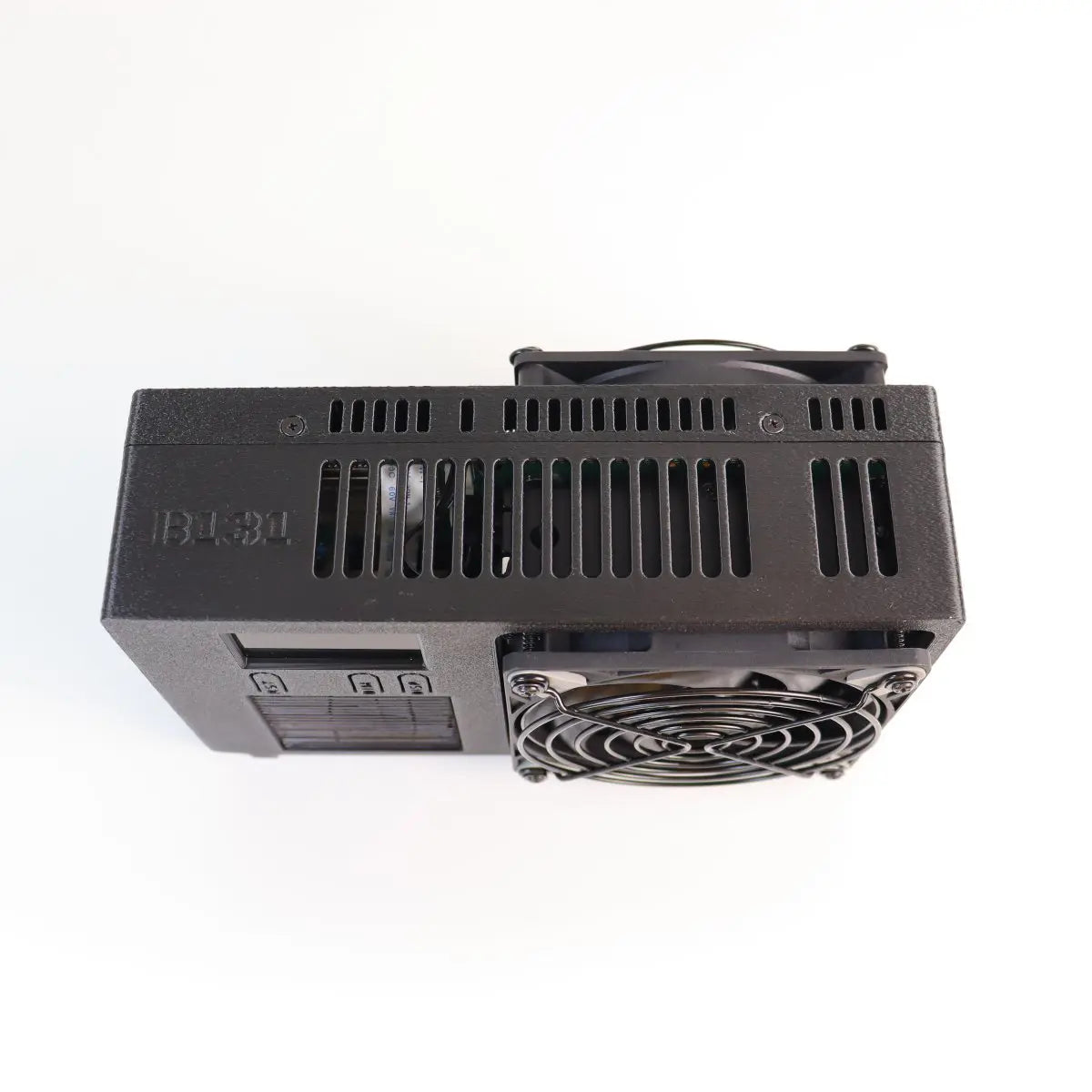

Luckyaxe B131 3-Mode Tunable Desktop Miner | 5.0-6.0TH/s Low-Power ASIC

• Brand: Luckyaxe
• Model: B131
• Algorithm: SHA-256

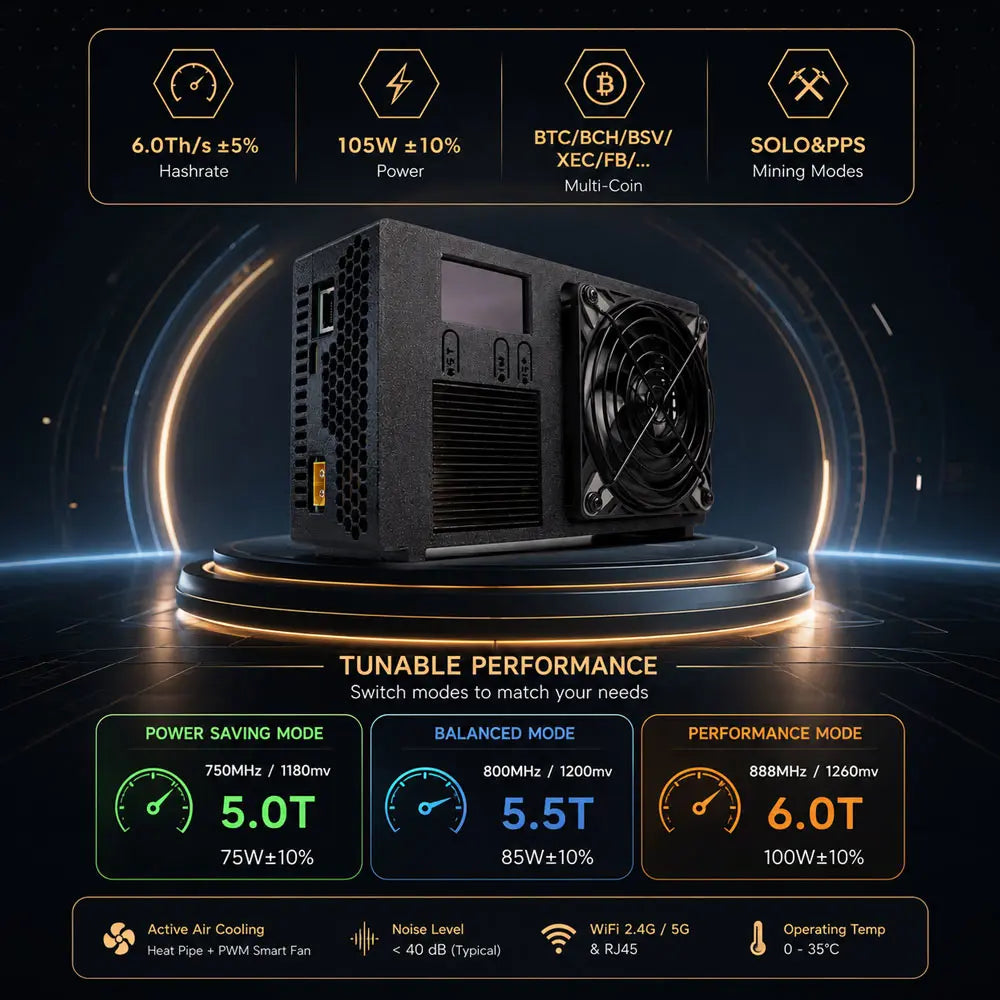

• Frequency Modes:Power Saving Mode: 5.0 TH/s ±5% @ 75W ±10% (750MHz / 1180mV)Balanced Mode: 5.5 TH/s ±5% @ 85W ±10% (800MHz / 1200mV)Performance Mode: 6.0 TH/s ±5% @ 100W ±10% (888MHz / 1260mV)

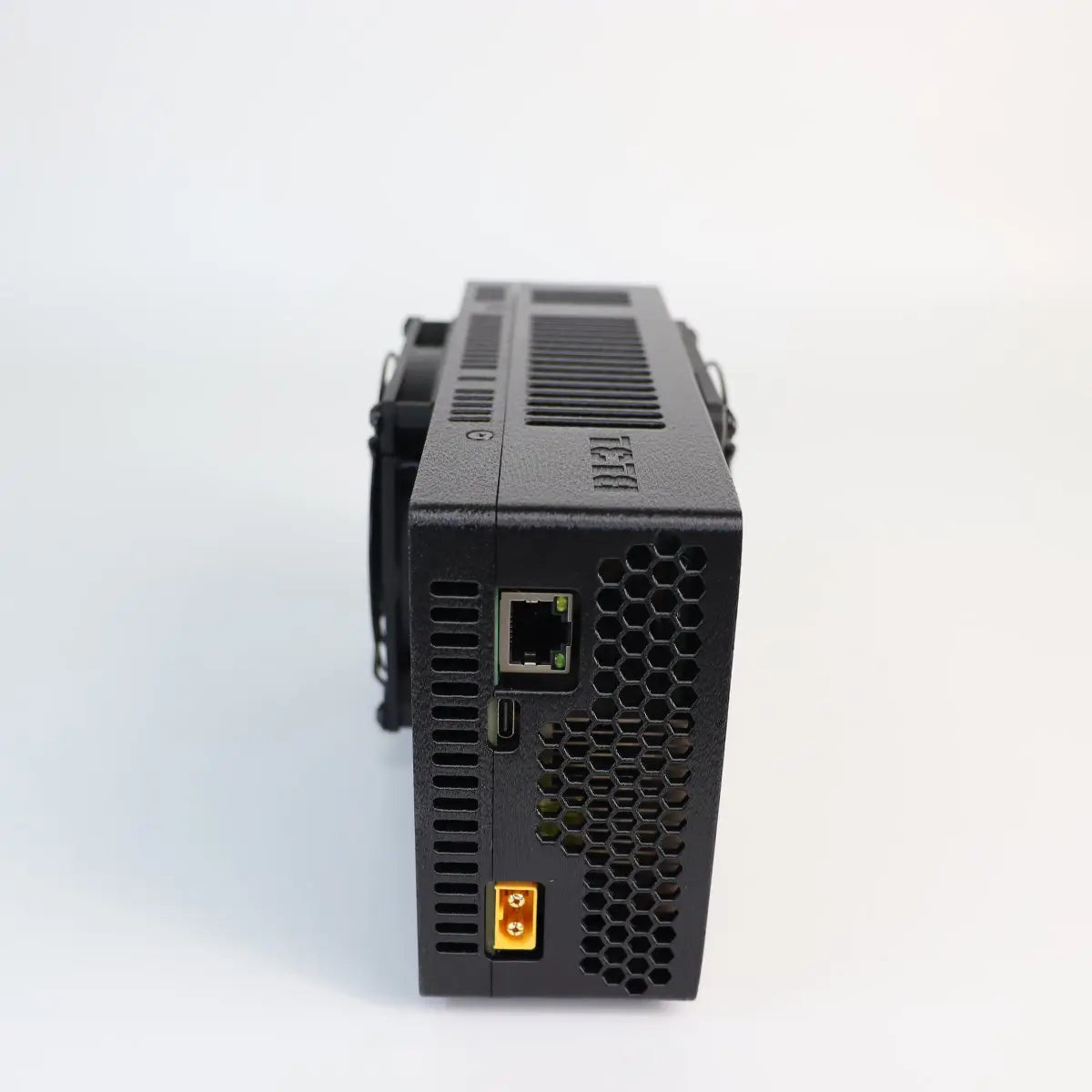

• Network Connectivity: WiFi 2.4G / 5G & RJ45 Ethernet
• Mining Modes: SOLO / PPLNS / PPS

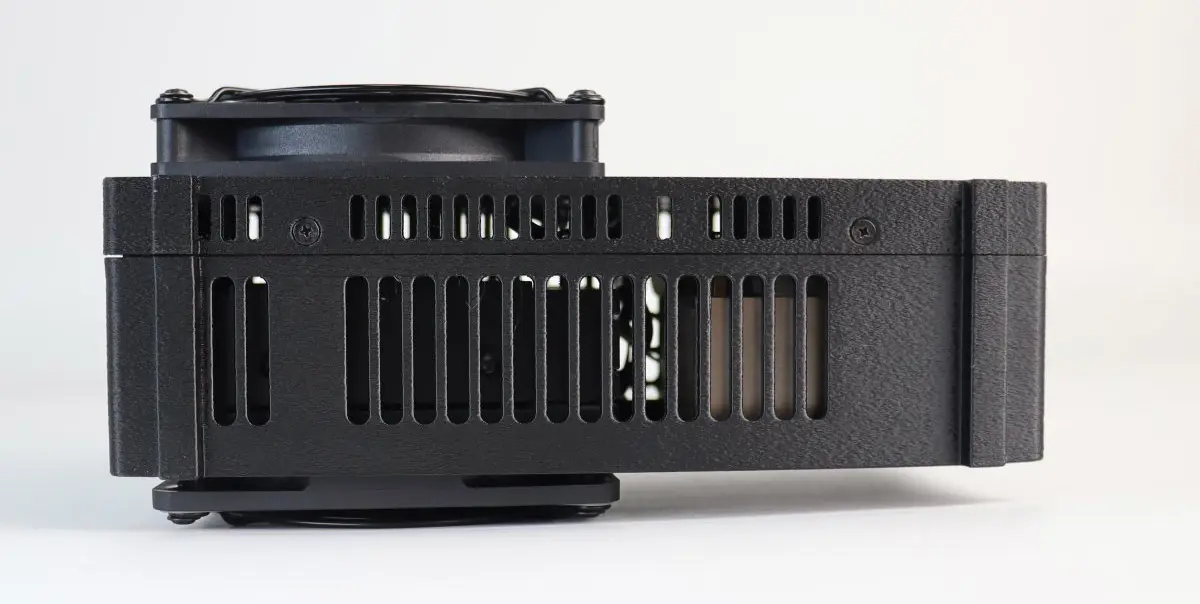

• Cooling System: Active Air Cooling (Heat Pipe Heatsink + PWM Smart Fan)
• Noise Level: < 40 dB (Typical)

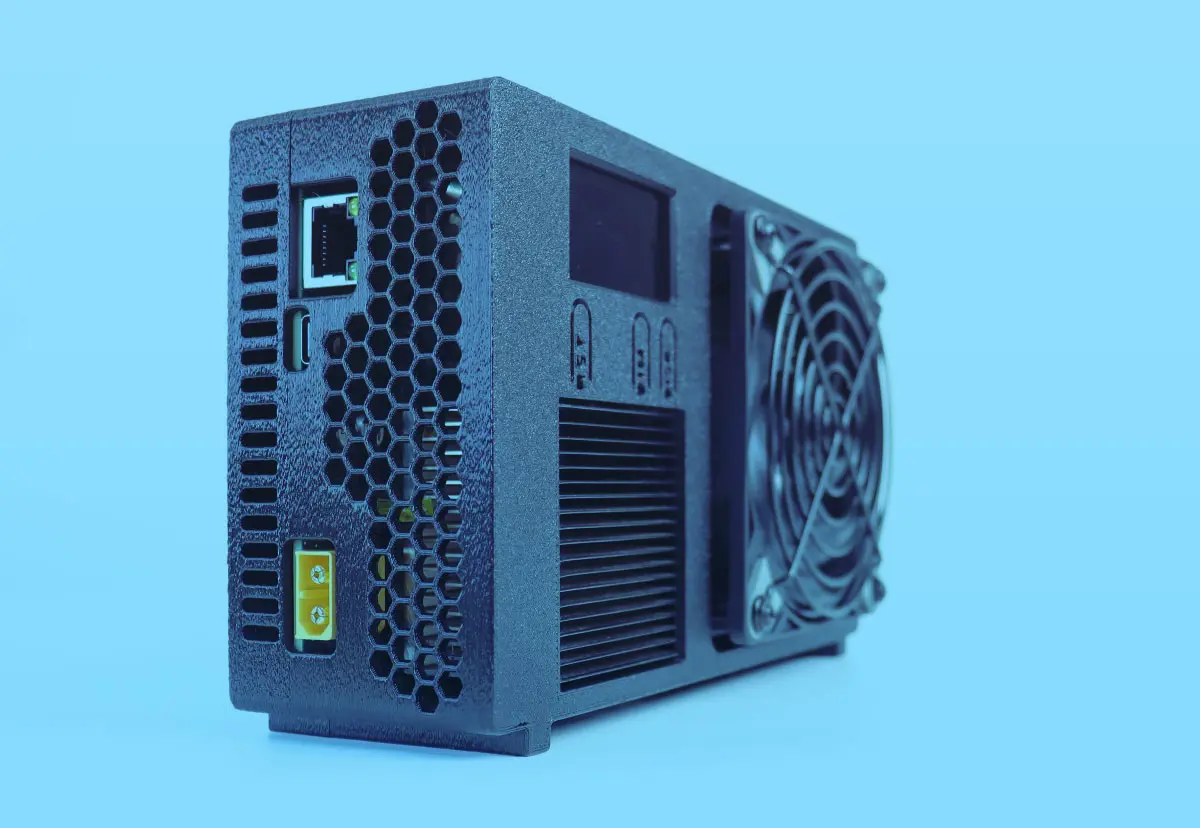

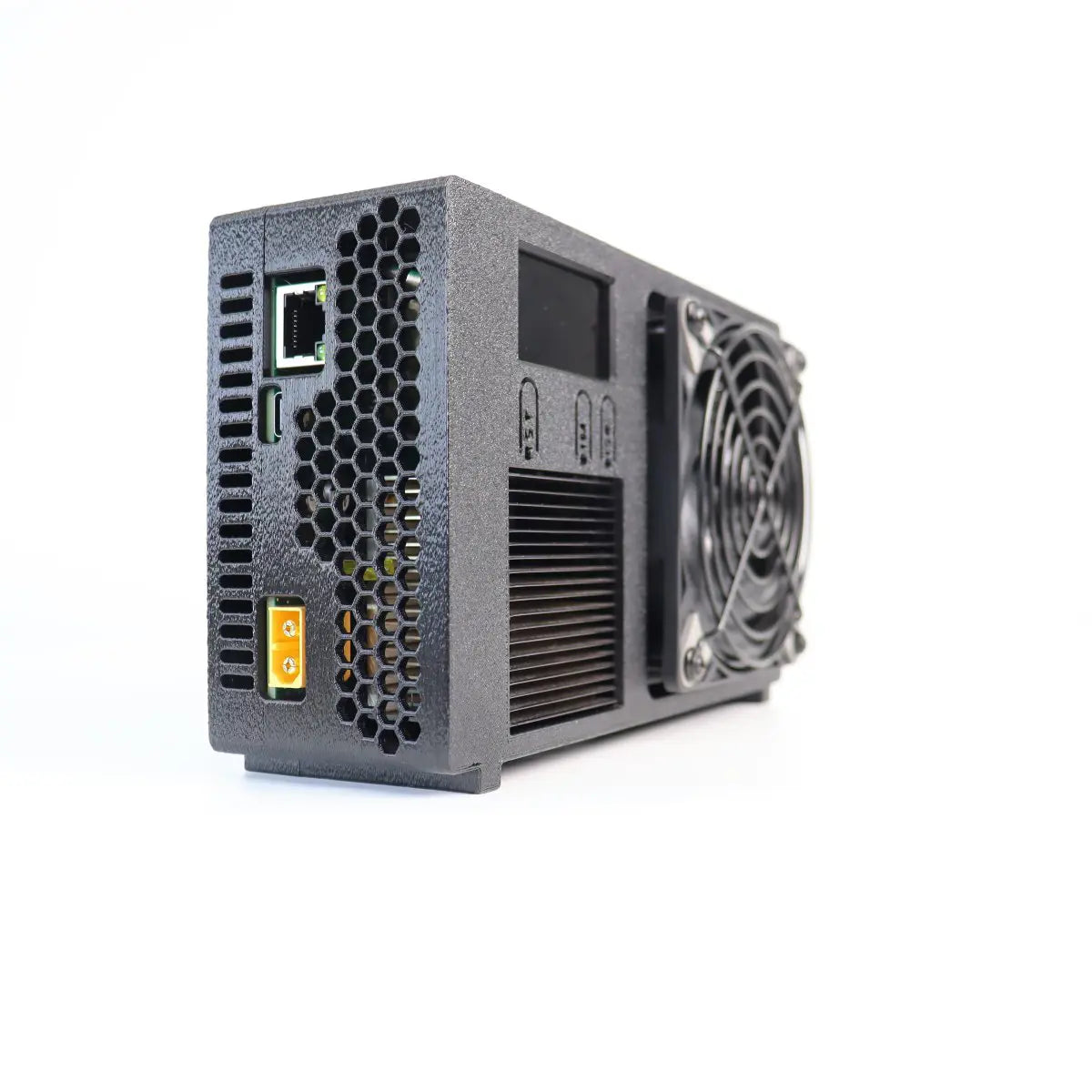

• Power Interface: XT60
• Operating Temperature: 0 ~ 35°C
• Core Voltage Limit: Maximum recommended 1.30V
• Warranty: 6 Months

Core Selling Point: Three Tuning Modes

Q: What operating modes does the B131 support? What are the hashrate and power consumption for each mode?
A: The B131 offers three selectable operating modes, allowing users to switch freely based on their needs:

• Power Saving Mode: 750MHz / 1180mV Core Voltage, 5.0T hashrate, 75W ±10% power consumption
• Balanced Mode: 800MHz / 1200mV Core Voltage, 5.5T hashrate, 85W ±10% power consumption
• Performance Mode: 888MHz / 1260mV Core Voltage, 6.0T hashrate, 100W ±10% power consumption

Each mode offers a different balance between hashrate output and power draw, allowing users to choose based on electricity costs, cooling conditions, and mining profit expectations.

Operating Status & Performance

Q: Are hashrate or power fluctuations normal?
A: Yes. Hashrate variations of ±5% and power fluctuations of ±10% are within the device's normal operating range.

Q: The fan noise is loud after startup. Is this normal?
A: Yes. During startup or under high load, the PWM fan may increase speed to enhance cooling, which can temporarily increase noise. This is normal behavior.

Q: The device temperature seems high during operation. Is this an issue?
A: No. ASIC miners generate heat by design during operation. As long as the device operates within the specified 0–35°C temperature range, this is normal.

Q: Will the power consumption always stay at a fixed value?
A: No. Actual power consumption varies depending on the selected operating mode, load intensity, ambient temperature, and operating conditions. Across different modes, power draw can range from 75W to 100W.

Operation & Usage

Q: Can the device be used in a closed cabinet or enclosed space?
A: No. Enclosed spaces restrict airflow and may cause overheating, throttling, or protective shutdown.

Q: Will the device resume mining automatically after a power outage?
A: Yes. If network and mining configurations remain unchanged, the device will automatically resume operation after power is restored.

Network & Connection

Q: What network connection methods does the device support?
A: It supports WiFi 2.4G, 5G, and RJ45 wired connections.

Q: What should I do if the device cannot connect to the network or frequently disconnects?
A: Please check the following: ensure the WiFi network is 2.4G/5G or RJ45; check router signal strength; verify network stability; and remove potential sources of interference.

Mining & Long-Term Maintenance

Q: Does the device guarantee mining profits?
A: No. Mining profitability depends on network difficulty, pool rules, electricity costs, and other external factors. The manufacturer makes no guarantees.

Q: What should I do if performance decreases after long-term use?
A: Regularly check the air intake and exhaust vents for dust buildup, clean as needed, and maintain proper ventilation. Good cooling helps sustain stable long-term performance.

Q: What is the maximum Core Vol setting?
A: Do not set Core Vol above 1.30V. Higher values may trigger the power adapter's protection mechanism and cause shutdown or instability.
