13% off
$343.00 USD
$298.00 USD
Power Supply Standard: AU Plug
Worldwide Delivery

Efficient logistics to anywhere

Quality Guarantee

Committed to superior standards

After-Sales Service

Attentive support for every order
Description

Product Overview:

The Magicminer BG01 is a high-performance SHA-256 mining card designed for enthusiasts who value efficiency and a distinctive aesthetic. Inspired by the "Flame Core Artisan" AELT, this card delivers a stable 4.5 TH/s hash rate while consuming only 120W of power. It fits seamlessly into standard desktop PC cases via a PCIe x16 slot, making it an ideal choice for home miners seeking a compact, powerful, and visually unique solution for mining Bitcoin (BTC), Bitcoin Cash (BCH), and other SHA-256 algorithm coins.

Key Features:

Efficient SHA-256 Performance
The BG01 delivers a stable hash rate of 4.5 TH/s (±5%) with a power consumption of just 120W (±10%), offering an excellent balance between mining performance and energy efficiency. It supports both SOLO and PPS mining modes.

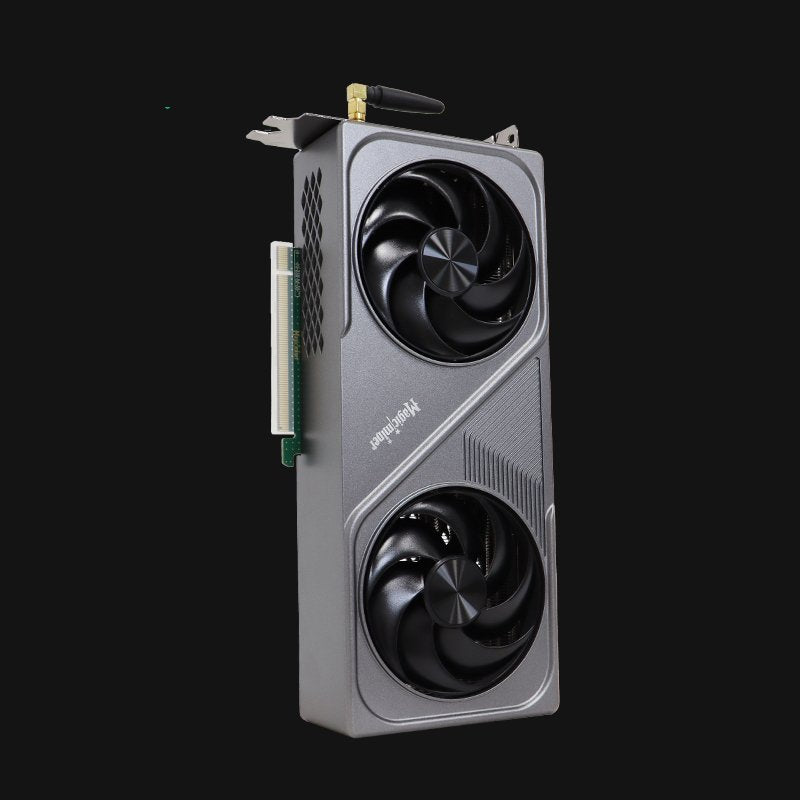

Standard PCIe x16 Form Factor

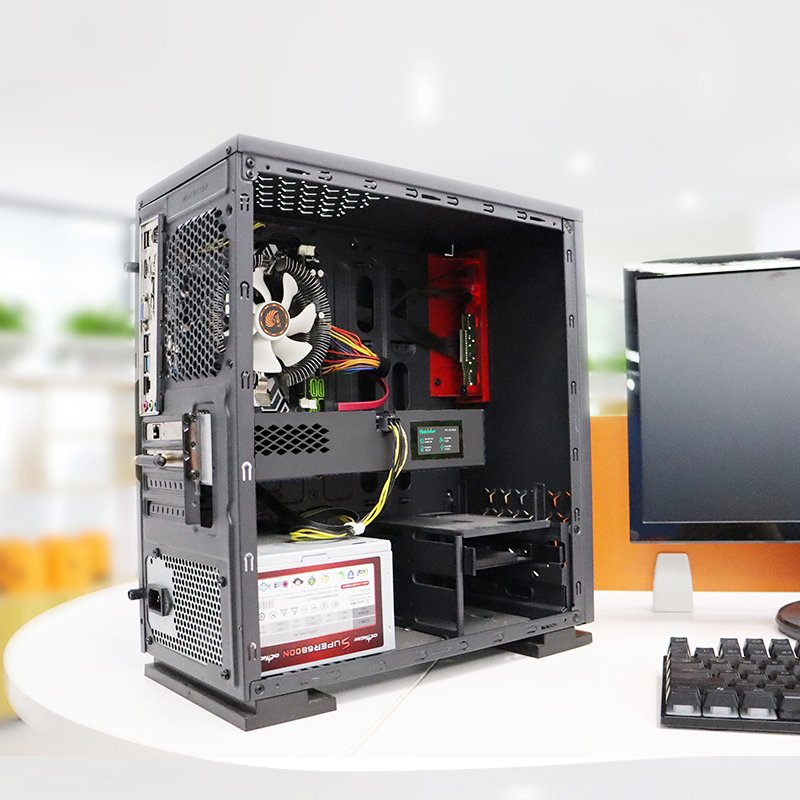

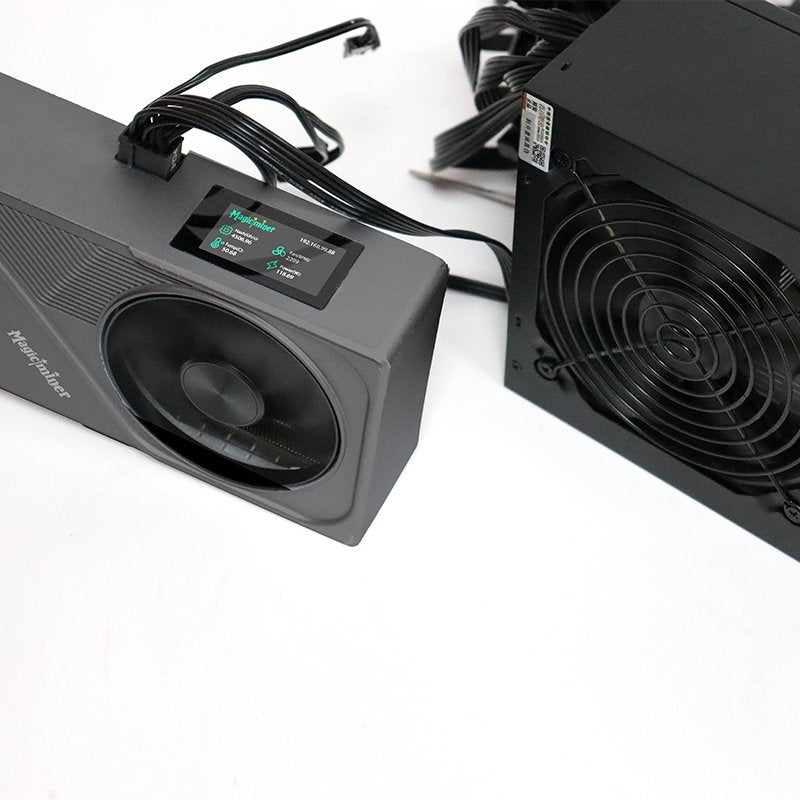

Designed to fit into standard graphics card slots, the BG01 comes with a flexible 8-pin (3+5) power cable and can be installed into most desktop PC cases, saving space compared to traditional mining rigs.

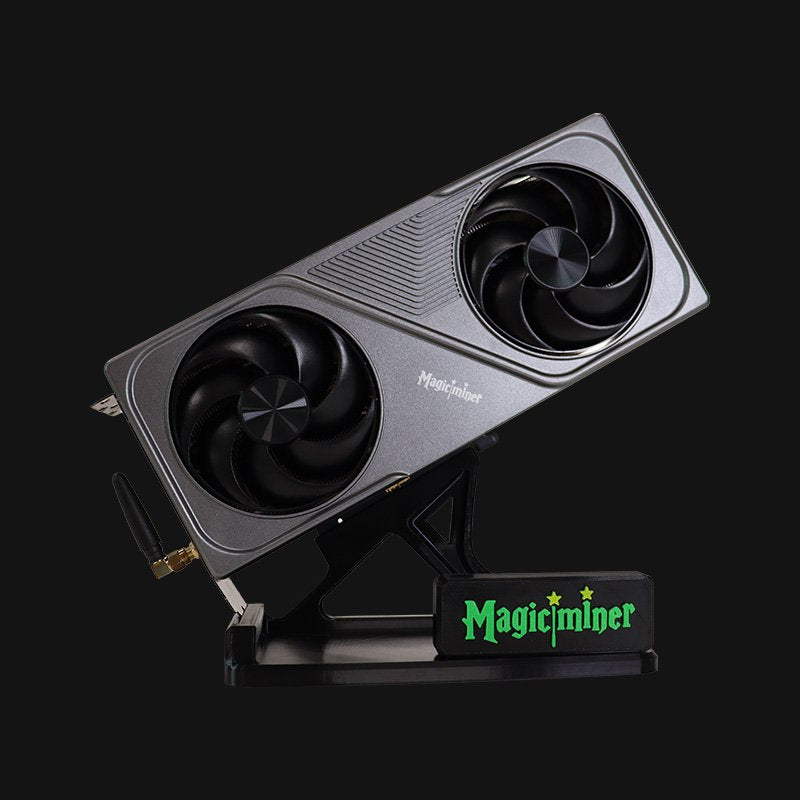

Unique Aesthetic Design
The BG01 features a distinctive dark gray themed design, inspired by the "Flame Core Artisan" AELT character. It blends function with fantasy, appealing to collectors and miners alike.

Flexible Connectivity Options
The device supports both wired Ethernet and Wi-Fi 2.4G connectivity. Whether you prefer a stable wired connection or the convenience of wireless setup, the BG01 adapts to your network environment. The default Wi-Fi SSID is Flame Signal Channel.

Easy Setup Process
The setup follows a straightforward 7-step process:

  1. Power off the host and ensure energy is fully dissipated.

  2. Securely insert the card into a PCIe x16 slot.

  3. Connect the power source (ensure stable supply).

  4. Connect to the network via Ethernet or Wi-Fi.

  5. Power on the host.

  6. Configure mining pool address, wallet address, and password via the web interface.

  7. Run the mining software and begin hashing.

Important Usage Notes:

  • Thermal Management: Maintain ambient temperature below 35°C and ensure proper airflow around the card.

  • Power Stability: Use a high-quality power supply to prevent voltage surges and ensure stable operation.

  • Maintenance: Regularly clean the fans and heatsinks to prevent dust buildup and maintain cooling efficiency.

  • Firmware: Only use official firmware. Manual may be updated; always refer to the latest official documentation.

  • Support: For technical inquiries, contact official support at support@magicimer.cc.

Warranty & Support:
The Magicminer BG01 comes with a 6-month warranty covering core components, with extension options available. Join the community via the QR code included in the package for updates and discussions.

Package Contents:

  • 1 x Magicminer BG01 Device

  • 1 x Power Cable

  • 1 x User Manual

  • 1 x Warranty Card

Specification

Algorithm:SHA-256
Hash Rate:4.5 TH/s (±5%)
Power Consumption:120W (±10%)
Efficiency:26.5 W/TH
Input Voltage:100–240V AC

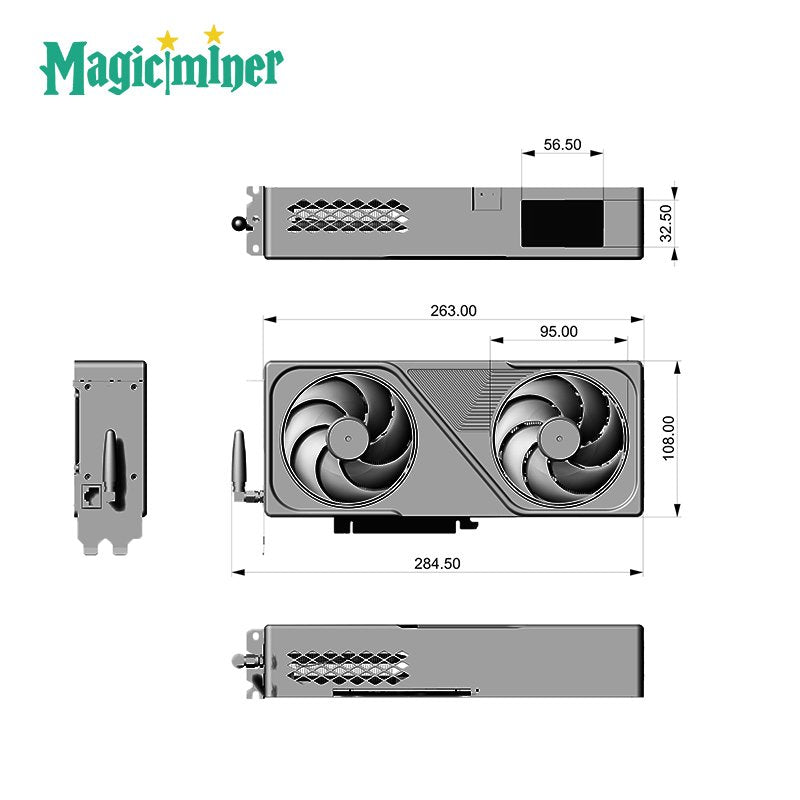

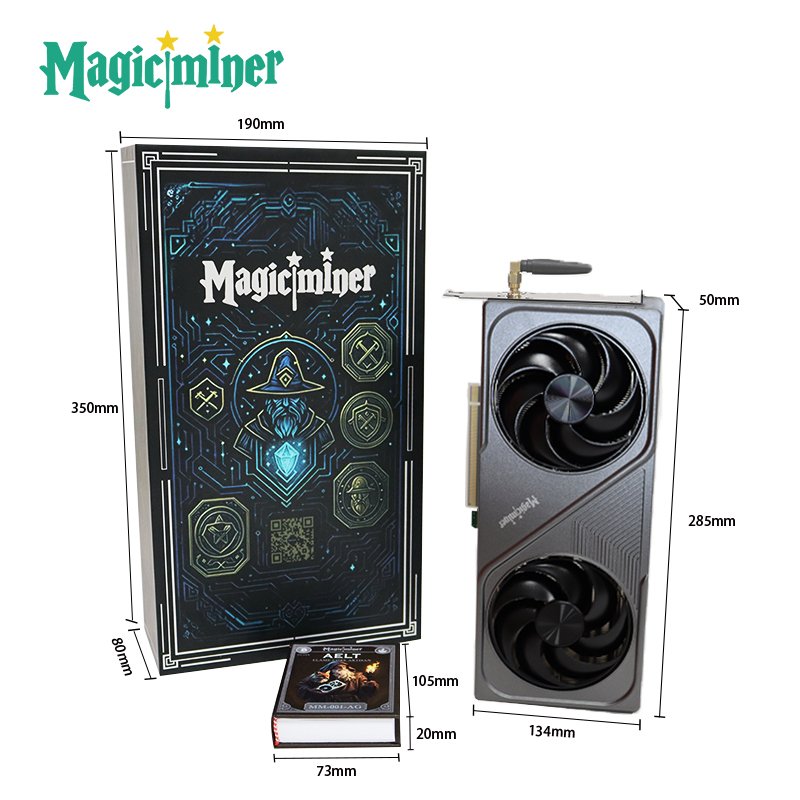

Dimensions:350 mm × 190 mm × 80 mm (packaging)
Weight:0.96 kg (net) / 1.85 kg (gross)
Operating Temperature:0°C to 35°C
Cooling:Active air cooling (fans + heatsink)
Network:Ethernet (RJ45) / Wi-Fi 2.4G
OS & Management:Web-based dashboard
Interface:PCIe x16
Power Interface:8-pin (3+5) Flex Cable
Mining Modes:SOLO & PPS
Supported Coins:BTC, BCH, BSV, XEC, FB, and other SHA-256 coins
Warranty:6 months (core components)

FAQ

Product Overview

Q: What is the BG01 (AELT Silver) miner?
A: The BG01 is a SHA-256 PCIe miner designed for installation in a desktop or server chassis. Its packaging dimensions are 350 × 190 × 80 mm, with a net weight of 0.96 kg and gross weight of 1.85 kg. It delivers 4.5 TH/s (±5%) hashrate with a power consumption of just 120W, achieving an efficiency of 26.5 W/TH.

Q: What are the key technical specifications of this miner?
A: Key specifications include:

  • Algorithm: SHA-256 (supports BTC, BCH, BSV, XEC, FB, and more)
  • Hashrate: 4.5 TH/s (±5%)
  • Power Consumption: 120W (±10%)
  • Efficiency: 26.5 W/TH
  • Input Voltage: 100–240V AC
  • Interface: PCIe x16 + 8-pin (3+5) Flex Cable
  • Network: Ethernet (RJ45) / Wi-Fi 2.4G
  • Dimensions (Packaging): 350 × 190 × 80 mm
  • Weight: 0.96 kg (net) / 1.85 kg (gross)
  • Operating Temperature: 0°C to 35°C
  • Cooling: Active air cooling (fans + heatsink)
  • Management: Web-based dashboard
  • Mining Modes: Supports both SOLO and PPS modes

Installation & Setup

Q: How do I install the BG01 miner?
A: Follow these steps:

  1. Turn off the host and wait for residual energy to fully dissipate.
  2. Insert the device securely into the PCIe x16 slot.
  3. Connect the power supply using the 8-pin (3+5) Flex Cable.
  4. Connect to the network via Ethernet (RJ45) or Wi-Fi 2.4G.
  5. Restart the host to wake up the device.

Q: What network connection options does this miner support?
A: The BG01 supports both Ethernet and Wi-Fi 2.4G. For Ethernet, plug the cable into the RJ45 port on the back of the host. For Wi-Fi, configure the connection through the web-based management dashboard.

Q: How do I configure mining after installation?
A: After the device powers on, access the web-based dashboard through your browser and configure the following items:

  • Mining pool address
  • Wallet address
  • Worker name

Once these settings are complete, the device will start hashing. You can switch between SOLO and PPS mining modes via the dashboard according to your preference.

Troubleshooting

Q: What should I do if the device does not start?
A: First, check the power connections. Ensure the device is firmly seated in the PCIe slot. Poor power contact is usually the cause.

Q: What causes overheating and how can I prevent it?
A: Overheating is typically caused by poor airflow or dust accumulation. Clean the fans and heatsinks regularly, keep the ambient temperature below 35°C, and ensure adequate air circulation.

Q: What should I do if the device restarts frequently or runs unstable?
A: This is often related to power supply quality or network stability. Use a reliable power source and ensure the network connection (Ethernet or Wi-Fi 2.4G) has sufficient signal strength and no interference.

Usage & Maintenance

Q: What are the recommended operating conditions for this device?
A: The ambient temperature should be maintained between 0°C and 35°C, with good airflow. The device uses active air cooling – keeping the fans and heatsink clean helps maintain stable performance.

Q: Does this device support remote management?
A: Yes. The BG01 provides a web-based management dashboard. You can access the device via its IP address in your browser for remote configuration, status monitoring, and mode switching.
